xTool P2 Riser Base - Grey

PRODUCT DETAILS

Click an item to expand and learn more

• Overview

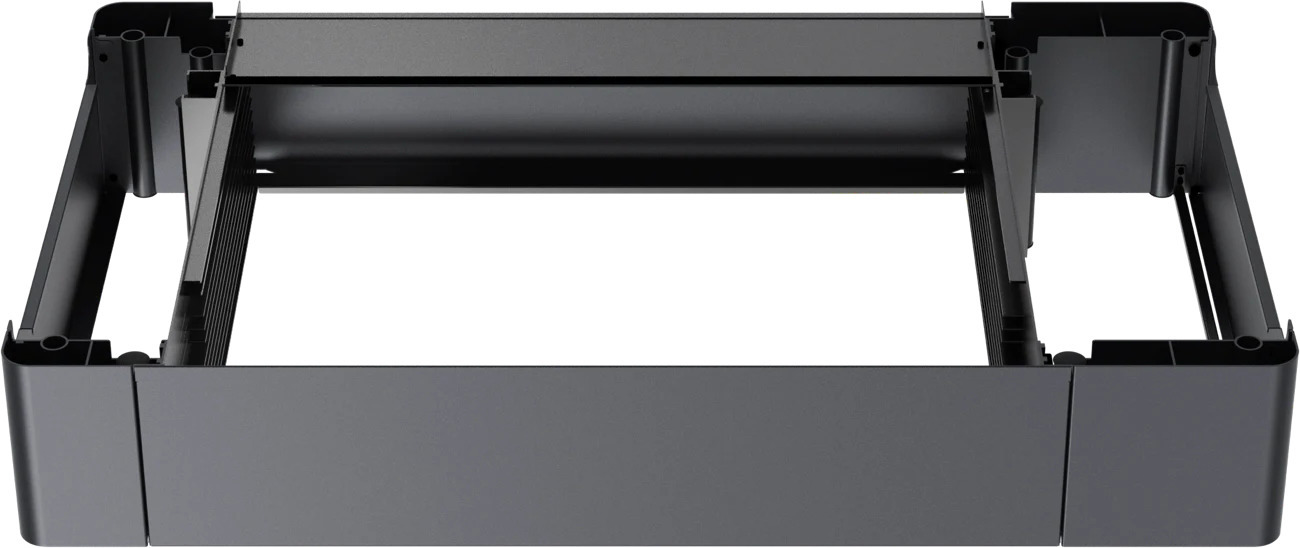

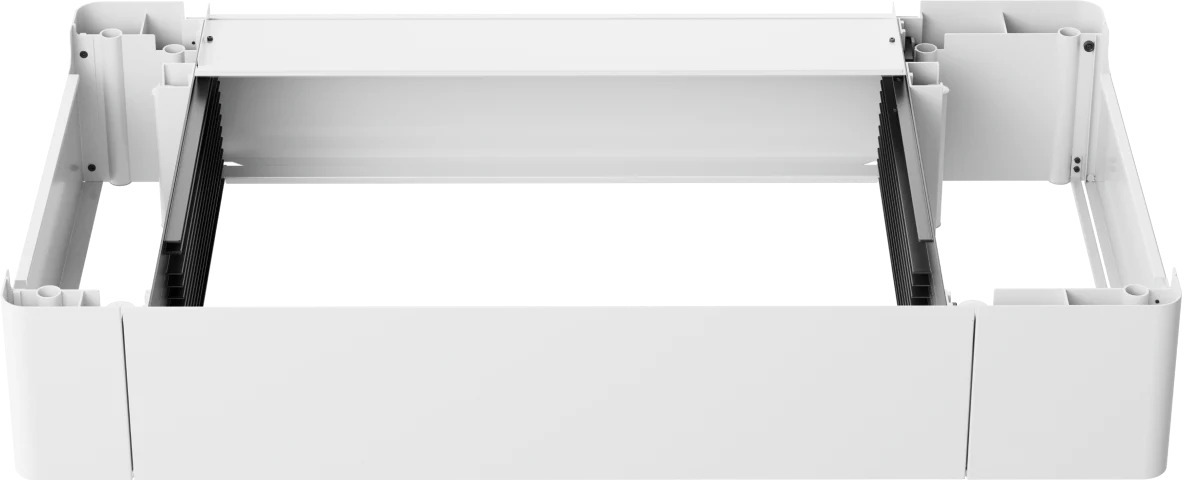

  xTool P2 Riser Base



  Pearl White	Space Grey



  Significant Upgrade on Engraving Thickness

  Max. Workpiece Height





  Max. Passthrough Height





  Rotary Engraving Diameter





  More Accurate,
  More Convenient

  Assembled with the Automatic Conveyor Feeder, it provides the automatic passthrough for precision and convenience when engraving and cutting extra-large materials.



  User-friendly Design

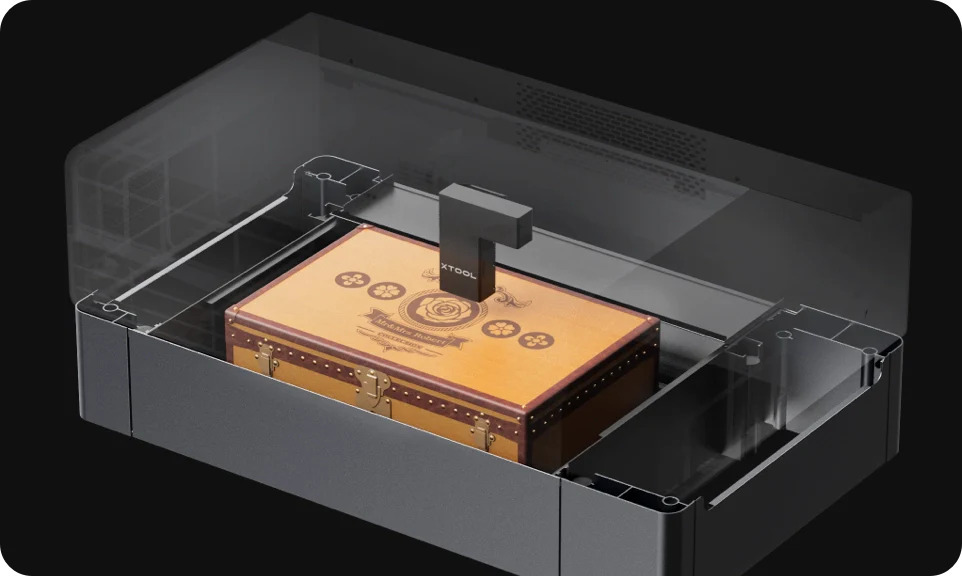

  Rising without Leaking While raising the machine for higher object engraving and cutting, the riser base ensures the work is done in a completely enclosed space, preventing light and smoke leaking. (Not supported on the passthrough)

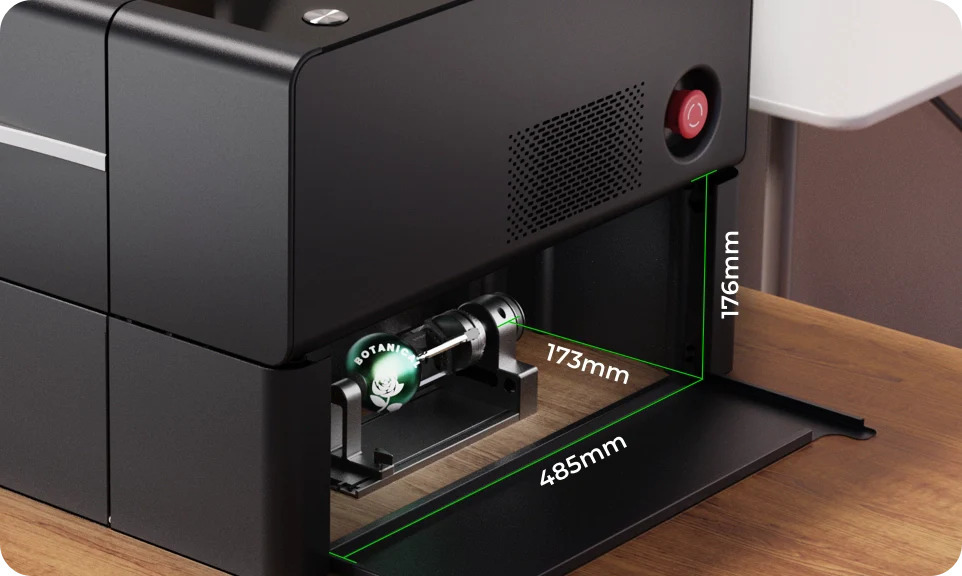

  Right Side Space for Storage You can keep the removed screws and slats, even RA2 Pro, for instant use, in the storage space on the right side of the riser base.



  Specification



  Product Infomation	xTool P2 Riser Base
  Applicable to	xTool P2
  Package Size	32.3''×13.5''×10.6'' (820mm*345mm*270mm)
  Product Size	39.3''×23.2''×6.8'' (1000mm*590mm*175mm)
  Product Weight	11kg
  Work Area
  Working Space	25.2''×13'' (640*330mm)
  Processing Area	23.6''×12.1'' (500*250mm)

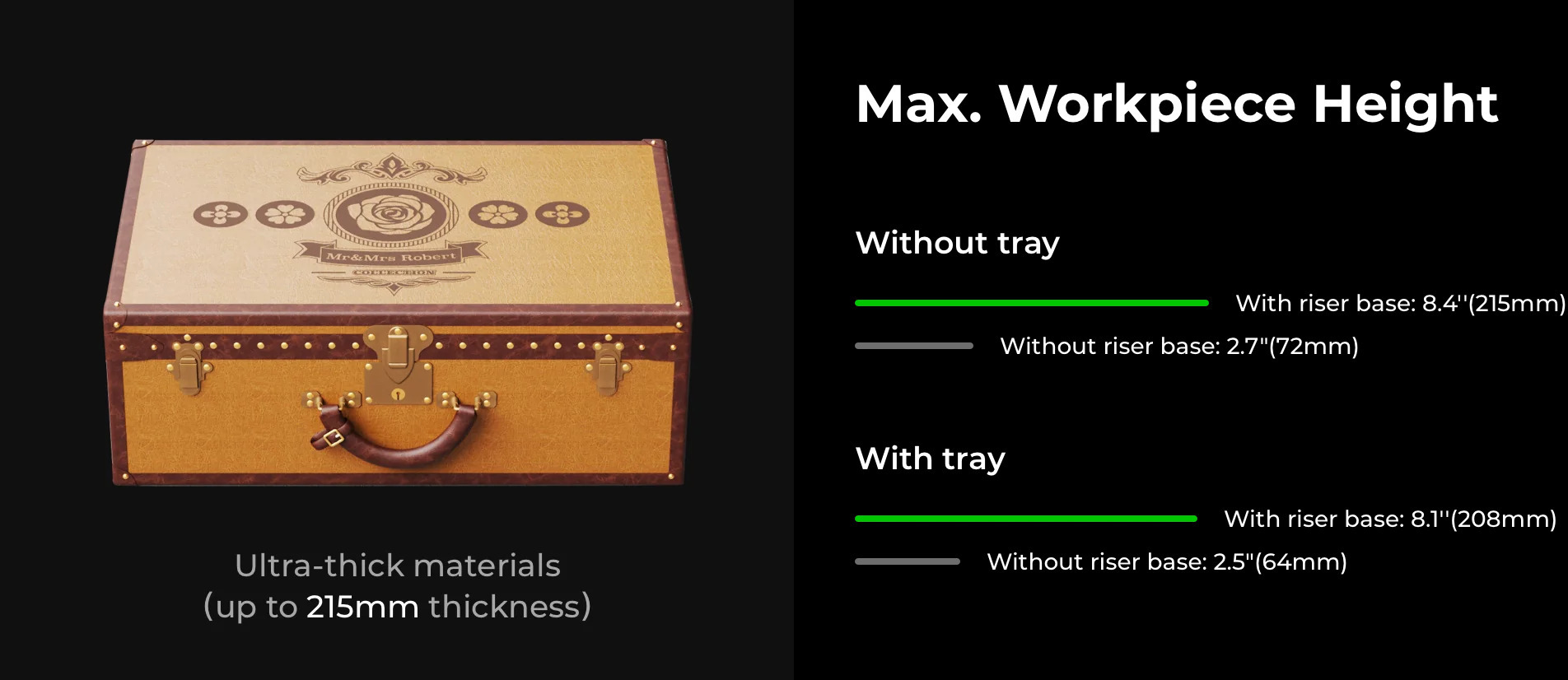

  Max. Workpiece Height	With tray: 8.1'' (208mm) Without tray: 8.4'' (215mm)
  Max. Passthrough Width	25.2" (640mm)

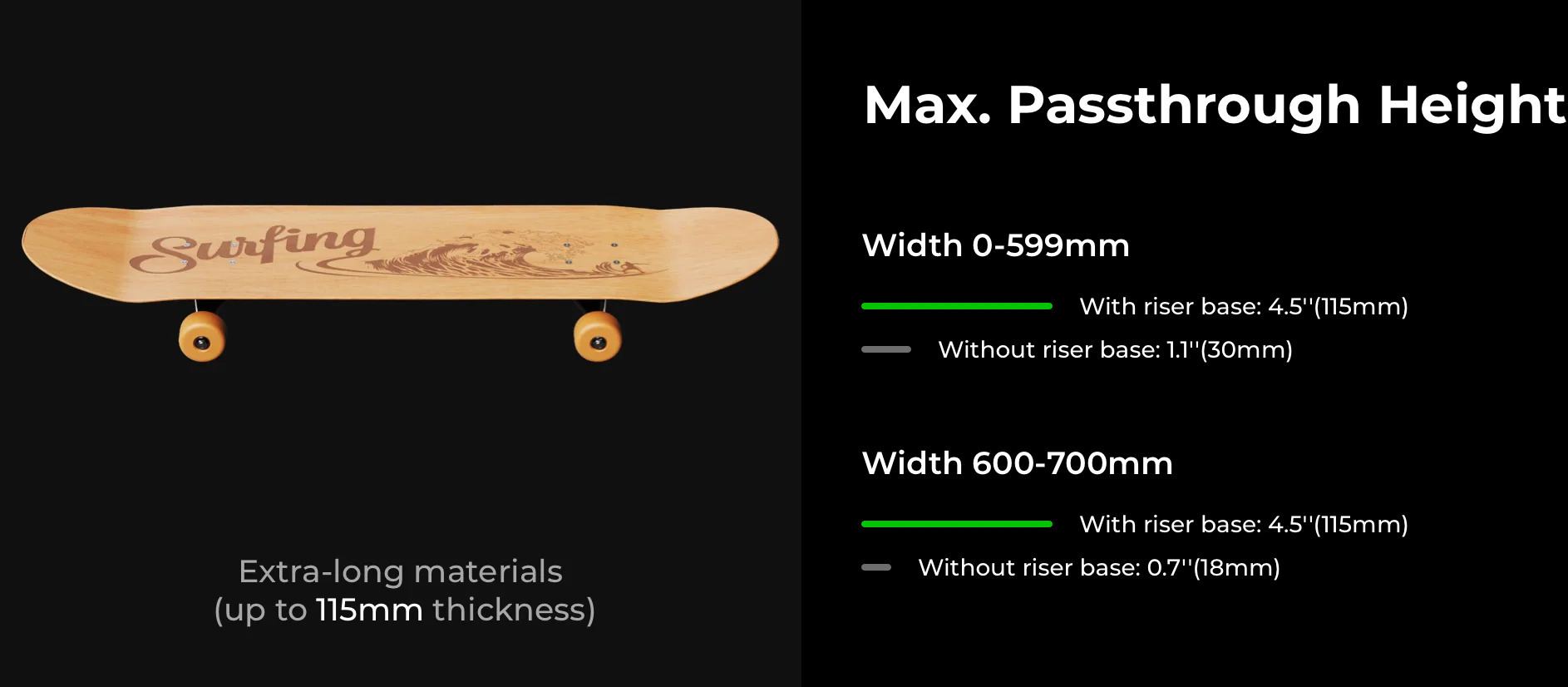

  Max. Passthrough Height	4.5'' (115mm)

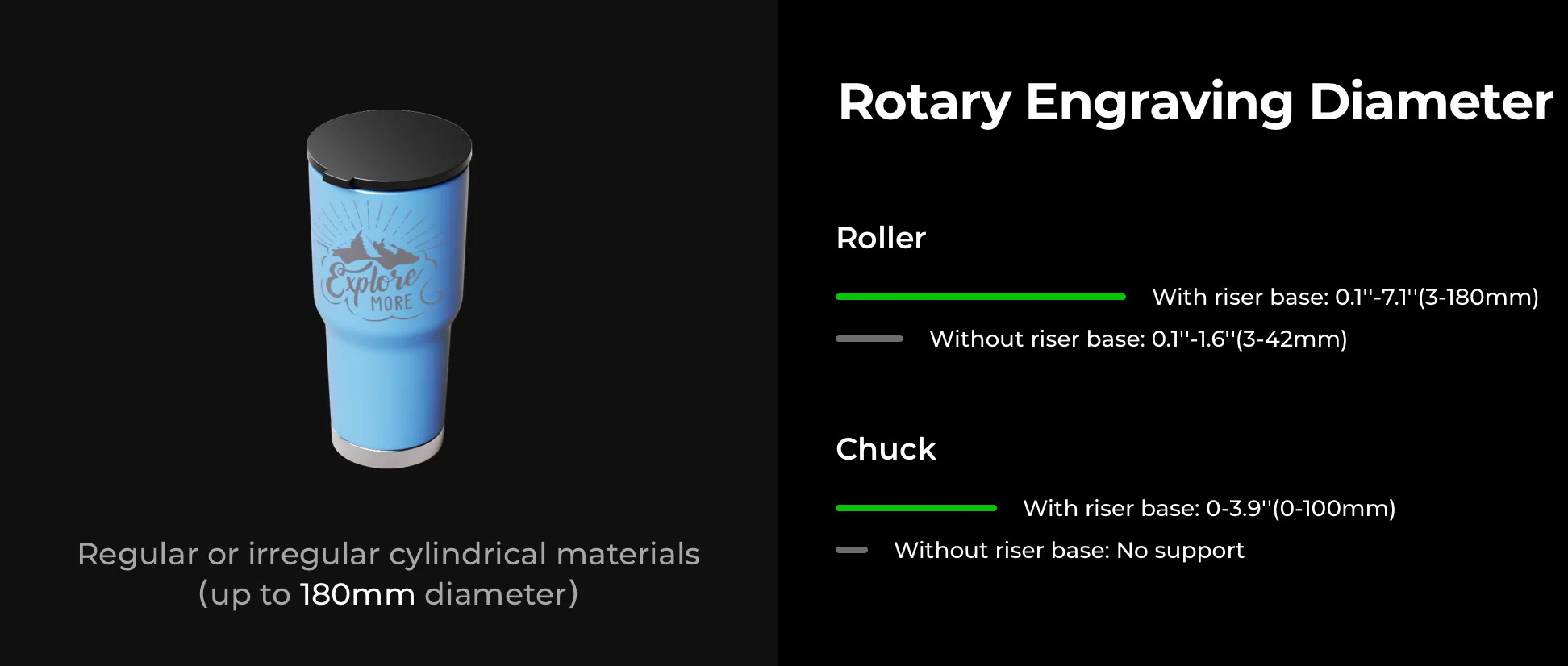

  Rotary Engraving Diameter	Roller: 0.1''-7.1'' (3-180mm) Chuck: 0-3.9'' (0-100mm)

• Reviews
• Questions and Answers
• Videos

  xTool P2 CO2 Laser Machine Riser Base First-Time Use Guide
