The xTool RA3 MagSwap™ rotary attachment allows you to engrave a wide variety of cylindrical objects such as cups, rings, vases, glasses, bottles, and much more.
The improved plug-in system lets you reconfigure the rotary attachment within seconds so it perfectly fits your application. Unlike previous rotary extensions, the RA3 not only enables you to clamp larger-diameter workpieces but also allows you to engrave objects like vases all around.
Optional Mass Production
Optionally, you can purchase multiple xTool rotary attachments and connect them in sequence to engrave several candle jars or similar items simultaneously—ideal for batch production.

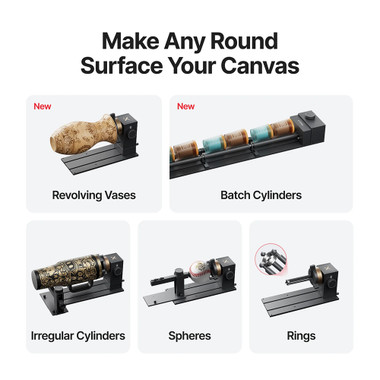

The RA3 offers the following modes and diameter ranges:
Roller Mode (3–198 mm diameter)
- Two rollers rotate the object
- Suitable for various cylindrical objects such as tealight holders, drinking glasses, etc.
- Can be combined with multiple rollers for mass production
Chuck Mode (0–130 mm diameter)
- The object is clamped and rotated
- Ideal for complex shapes with varying thickness or handles, such as tumblers, bottles, cups, etc.
Sphere Mode (25–100 mm diameter)
- The object is clamped on one side and fixed with pins on the other
- Suitable for spherical objects such as Christmas ornaments, baseballs, etc.
Ring Mode (11–70 mm diameter)
- The object is mounted on three rods and rotated
- Perfect for engraving rings (inside & outside)
- Also allows you to mount vases for full 360° engraving
Specifications:
- Product size: 324 × 187 × 148 mm
- Weight: 2.26 kg
- Note: Rotary Attachement suitable for xTool P2 or P2S CO2 laser (LK4).
Download Manual Instructions PDF
xTool Rotary Attachment 3 Unboxing and First Use
Process Cylinders with xTool P2
Set the focus for the chuck mode
