Laguna MLAREVO1216EVS REVO 12|16 Lathe with Variable Speed and Digital Readout

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  The definitive midi-lathe, Laguna’s REVO 12|16 encapsulates the prestige of Laguna in a small package. Featuring a Pulse Width Modulation system motor to maintain consistent torque at any speed, one step cam-action belt change with magnetic door housing, and a luxury banjo w/45º chamfered edge.

  Features:

  • 1 HP DC Permanent Magnet Motor
  • Pulse Width Modulation (PWM) Controller

  The 1216 controls the 1hp DC motor using pulse width modulation. A big problem with DC motor control is torque in the low speeds, and you will find many MIDI lathes with the lowest speed of 250RPM and higher because of this. This is because the cost effect controllers introduce resistance into the voltage to limit the power, which reduces the speed but also reduces the torque at the same rate. PWM will deliver full torque across the entire speed range. This allows for tremendous torque in low speeds which is helpful when roughing and precision work. This also allows for outboard turning up to a 16” bowl on a mid-sized lathe.

  Additional Details:

  • Electrical Requirements: 110V-1PH-60Hz
  • Recommended Breaker Size: 110V – 15 Amp
  • Speed Range High: 650 – 3500 RPM
  • Speed Range Mid: 325 – 1750 RPM
  • Speed Range Low: 50 – 525 RPM
  • Distance Between Centers: 15-½″
  • Swing Over Bed: 12-½″
  • Swing Over Banjo: 9-½″
  • Max Outboard Swing: 16″
  • Spindle Bore: ⅜″
  • Spindle Thread: 1″ x 8 TPI (Both Ends)
  • Front Bearing: 6006LLU
  • Rear Bearing: 6005LLU
  • Indexing: 24 Positions With Lock
  • Accepts Vacuum Chuck: No
  • Drive Belt: Poly-V Belt 6 Grooves
  • Tailstock Quill: MT #2
  • Tail Stock Quill Travel: 2-½″
  • Bed Length: 29.4″
  • Bed Gap: 1-1/4″
  • Tool Rest Length: 6″
  • Tool Rest Post Diameter: 1″
  • Faceplate Diameter: 3″
  • Certification: CSA C/US 256540
  • Floor To Bed Height: 6-3/4″ No Pads
  • Floor To Spindle Center: 13″ No Pads
  • Overall Size (L x W X H): 35.8″ x 14.6″ x 20.5″
  • Net Weight: 118 lbs
  • Shipping Weight: 125 lbs
  • Shipping Dimensions: 37″ x 15″ x 21″
  • NEMA Plug: 5-15P
  • Cord: 6ft

  Uses:

  • Turning wooden bowls
  • Crafting table legs
  • Making wooden pens
  • Creating candlesticks
  • Shaping baseball bats
  • Producing wooden vases
  • Carving wooden goblets
  • Designing artistic sculptures
  • Constructing wooden mallets
  • Turning wooden platters

  Read More

• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF

  Download Parts Manual PDF

• Videos

  Bar Tap Handle: Revo 12-16 Lathe with Chops Mfg | Laguna Tools

  Drum Sticks: Revo 12-16 Lathe with Chops Mfg | Laguna Tools

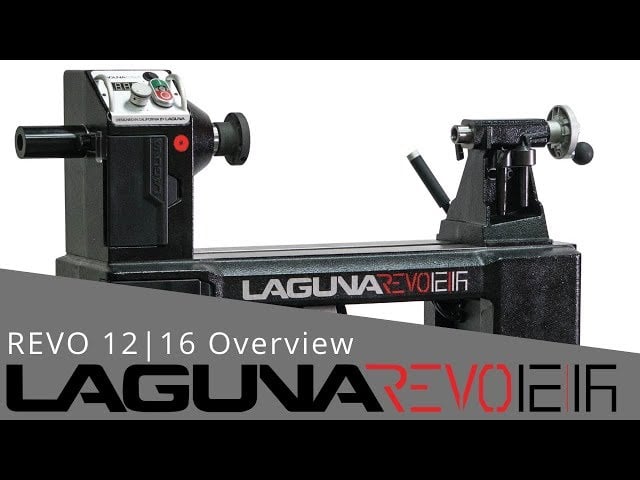

  Feature Overview of the REVO 12|16 | Laguna Tools

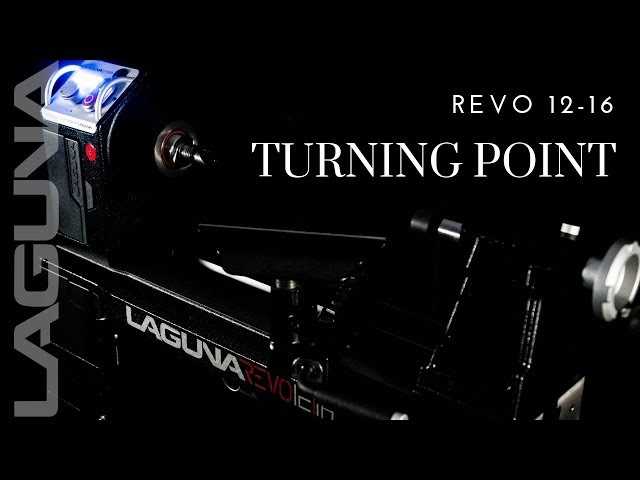

  Introducing the Revo 12 16 lathe, the newest offering to the turning world | Laguna Tools
