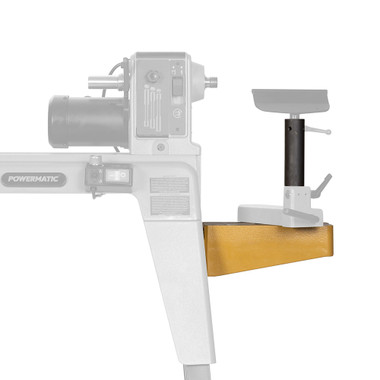

Powermatic PM2014B 13" Bed Extension – Expand Your Turning Capacity
The 13-inch bed extension for the Powermatic PM2014B woodworking lathe is designed to increase working capacity and improve flexibility for spindle and outboard turning applications. When installed, it expands the distance between centers from 20 inches to 33 inches, giving woodturners significantly more room for longer stock and larger projects.
Constructed from heavy cast iron, the extension maintains the same rigidity and vibration-damping characteristics as the original lathe bed, ensuring stable, smooth operation even under load. It mounts to the outboard end of the lathe and can be configured either level with the bed for extended spindle work or lowered for outboard turning setups.
A post extender is included to maintain proper tool rest alignment when the extension is used in the lowered outboard position. This ensures correct centerline height, improving tool control, cutting accuracy, and operator safety during turning operations.
Features
- Expands lathe capacity from 20 inches to 33 inches between centers when mounted level.
- Compatible exclusively with the Powermatic PM2014B woodworking lathe system.
- Heavy cast iron construction provides rigidity and vibration damping.
- Can be mounted level for spindle turning or lowered for outboard turning applications.
- Included post extender ensures correct tool rest height in outboard configuration.
- Improves versatility for both small and longer spindle projects.
- Maintains stability and precision consistent with the PM2014B lathe platform.
Specifications
- Stock Number: PM1-485
- Compatible Model: Powermatic PM2014B Woodworking Lathe
- Extension Length: 13 in.
- Expanded Between Centers: 20 in. to 33 in.
- Material: Heavy Cast Iron
- Mounting Position: Level or Lowered (Outboard Turning)
- Included Accessories: Post Extender for Tool Rest Alignment
- Product Type: Lathe Bed Extension
- UPC: 019907006999
- Availability: Call 855-260-0790
Ideal Uses
- Turning longer spindle projects such as table legs, bed posts, and stair components.
- Expanding capacity for furniture parts that exceed standard 20-inch lathe limits.
- Outboard turning of larger diameter bowls and faceplate work.
- Woodturning shops needing flexible configurations for mixed-size projects.
- Custom woodworking requiring both compact and extended spindle setups.
- Professional and hobbyist turners working with varied stock lengths.
- Workshop environments where space-efficient expansion is preferred over a larger lathe.
