Amana Tool 61295 Insert Carbide Spiral Jointing 3-3/16 (80.96mm) D x 4-3/4 CH x 18 Teeth x 1-1/4 Bore Shaper Cutter

PRODUCT DETAILS

Click an item to expand and learn more

• Overview

  Re-Ordering Insert Knives List

  Included General Purpose
  Solid Carbide Insert Knives

  Optional DLC* Coated Insert Knives
  Optimal for cutting Solid Wood


  RCK-70 (14 x 14 x 2mm)
  61292 = 12 Qty
  61295 = 18 Qty




  RCK-70-DLC (14 x 14 x 2mm)
  61292 = 12 Qty
  61295 = 18 Qty

  *Diamond-Like Carbon (DLC) is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness and high corrosion resistance.

  Re-Ordering Torx® Screw and Torx® Key List

  Included Torx® Screw

  Included Torx® Key


  67154


  5015

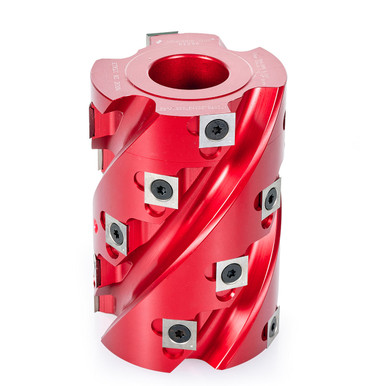

  Hard wearing aluminum body complete with 4-sided solid carbide insert knives produces cuts so smooth it practically eliminates sanding. The secret is in the spiral pattern of the twelve individual knives. Unlike conventional cutterheads, there is always a knife in contact with the surface of the stock. This unique design totally eliminates the rippled, textured surface normally associated with wing type cutterheads. Suitable for planing and jointing in softwood, hardwood and man-made boards on a spindle molder.

  HOW TO SHARPEN Sharpening is easy, too. When the long lasting solid tungsten carbide knives show wear, simply rotate each knife a quarter turn. That’s it.

  PATTERN SHAPING Can be used with a bearing guide and ring fence for planing and routing curved work pieces with a template. If Rub Collar is needed, the correct rub collar is for #61292 is #61596, for #61295 use #61650

  RESULT Produces cuts so smooth it practically eliminates sanding. Each cutterhead features:



  • Lightweight aluminum alloy construction with precision ground, micro-grain carbide knives.
  • Positive locking system to hold the knives, which ensures exact indexing, less down-time and more production.
  • Unique spiral/staggered design utilizing insert carbide knives, each having 4 cutting edges.
  • Manufactured to strict 'BG' specifications, which limits the chip thickness for a safer, more controlled cut.

  Standard bore is 1-1/4" | Includes Torx® key
