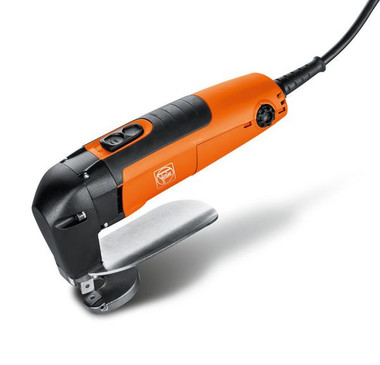

Easy-to-use, curve-compatible sheet metal shear for cutting and trimming thin sheets.
Details
- Outstanding ergonomics and compact design for optimal mobility of the shear.
- Good curve precision with low sheet-metal distortion.
- Indexible cutting blades with four sides for clean and burr-free cutting with low operating costs.
- Perfect for trimming and cutting.
- Unrestricted view of the cutting line.
- Motor with outstanding performance and durability.
- 16 ft. [5 m] cable.
- Stainless steel up to 19 gauge [1.0 mm].
Technical data
- Power consumption: 350 W
- Power output: 210 W
- Strokes: 2,300 - 4,800 spm
- Cutting speed: 26.2 [8] - 39.4 [12] ft/min[m/min]
- Steel 58,000 lbf/in²: 0.063 [1.6] in[mm]
- Steel 87,000 lbf/in²: 0.0472 [1.2] in[mm]
- Steel 116,000 lbf/in²: 0.0394 [1.0] in[mm]
- Non-ferrous metals up to 36,000 lbf/in²: 0.0787 [2.0] in[mm]
- Radius of smallest curve: 1/2 [15] in[mm]
- Cable with plug: 16.4 [5] ft[m]
- Weight: 3.75 [1.70] lbs[kg]
Vibration and sound emission values
- Sound pressure level LpA: 82,5 dB
- Measurement uncertainty of the measured value KpA: 3 dB
- Sound power level LWA: 93,5 dB
- Measurement uncertainty of the measured value KWA: 3 dB
- Peak sound value LpCpeak: 94,9 dB
- Measurement uncertainty of the measured value KpCpeak: 3 dB
- Vibration value 1 αhv 3-way: 4,1 m/s²
- Measurement uncertainty of the measured value Kα: 1,5 m/s²
Application
- Cuts: well suitable
- Curve cuts: suitable
Product feature
- Reversing blade: 4x
- FEIN high-performance motor
Additional Info
- Custom metalwork projects, allowing for intricate designs and precision cuts.
- Automotive bodywork and restoration, enabling precise trimming and shaping of body panels.
- HVAC ductwork fabrication, for clean and efficient cutting of thin metal sheets.
- Roofing and siding installation, offering the ability to easily cut and trim materials on-site.
- Artistic metal sculpture creation, allowing artists to cut complex shapes and curves.
- Fabrication of metal cabinets and enclosures, ensuring precise dimensions and edges.
- Making custom signage from metal, providing the ability to cut intricate designs and letters.
- Repairing metal fences and gates, by cutting out damaged sections or creating replacement parts.
- Construction projects requiring metal trimming or cutting, such as flashing or trim pieces.
- Aviation maintenance and repair, for cutting and trimming sheet metal parts with precision.
