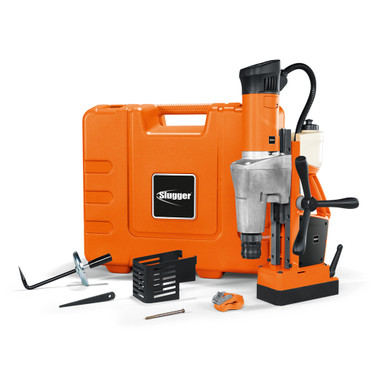

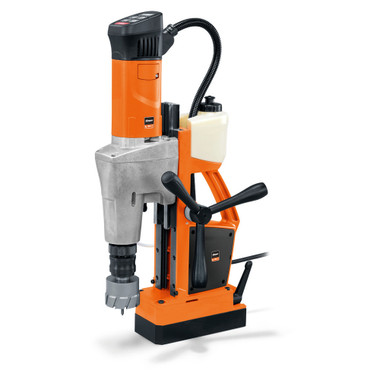

FEIN 72704761120 JCM 256 U Magnetic Core Drilling Machine

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Mag Drill Unit up to 2-1/2 in [65 mm]

  High-performance magnetic drill unit with a 2-speed gearbox and outstanding functionality for universal and efficient use in the workshop. Designed for demanding drilling, tapping, countersinking, and reaming applications, this mag drill delivers stable speed and reliable performance even in tough working conditions.

  Details

  This magnetic drill unit features stable speed control for consistent results in demanding applications. Fine drill spindle adjustment allows convenient machine alignment, while double drill motor guides enable the use of longer annular cutters. The reversible electronic speed control provides added versatility for a wide range of metalworking tasks.

  Additional features include an MT3 interface, high magnetic holding force, and a convenient magnetic holding force indicator that supports safe tool positioning. The integrated coolant tank helps extend core drill tool life and supports efficient drilling performance.

  Technical Data

  Power consumption: 1,300 W
  Power output: 730 W
  Cutter holder: 3/4" straight shank
  Load speed, 1st gear: 120 - 240 rpm
  Load speed, 2nd gear: 260 - 520 rpm
  Tool mount: MT 3
  Carbide cutter max. diameter: 2-1/2 in [65 mm]
  HSS cutter max. diameter: 1-3/4 in [45 mm]
  Cutter max. drilling depth: 2 in [50 mm]
  Twist drill max. diameter: 1 in [25 mm]
  Tapping: M 20
  Max. countersinking diameter: 2 in [50 mm]
  Reaming max. diameter: 1 in [25 mm]
  Cutter change: Tool-free
  Stroke: 5-11/16 in [145 mm]
  Total stroke range: 12-3/8 in [315 mm]
  Drill stand adjustment range: 1/4 in [6 mm]
  Drill stand angular adjustment: 7°
  Magnetic holding force: 3147 lbs [14,000 N]
  Cable with plug: 13.1 ft [4 m]
  Weight: 35.05 lbs [15.90 kg]

  Applications

  Mag base drilling in metal up to 1-1/2" diameter: Well suitable
  Mag base drilling in metal up to 2" diameter: Well suitable
  Mag base drilling in metal up to 2-9/16" diameter: Well suitable
  Twist drilling with drill chuck: Suitable
  Twist drilling with MT fitting: Well suitable
  Tapping: Well suitable
  Countersinking: Well suitable
  Reaming: Well suitable
  Performing overhead work: Suitable
  Installation work: Well suitable
  Workshop jobs: Well suitable

  Product Features

  Magnet monitor system
  Magnet holding force display
  Forward/reverse operation
  Electronic speed setting
  Memory function
  Speed-controlled tacho electronics

  Uses

  • Workshop drilling
  • Steel fabrication
  • Structural steel drilling
  • Large-diameter core drilling
  • Twist drilling with drill chuck
  • Twist drilling with MT fitting
  • Tapping applications
  • Countersinking work
  • Reaming applications
  • Installation work
  • Metal plate drilling
  • Heavy-duty maintenance work
• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF

  Download Sheet PDF
