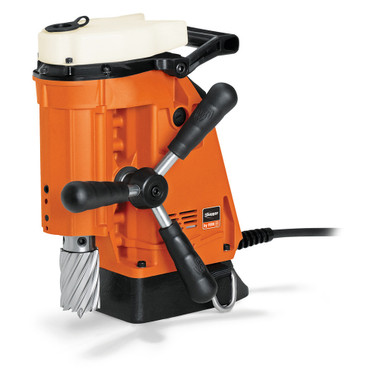

FEIN 72725361127 JHM Magforce Heavy Duty Magnetic Core Drill

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
  Mag Drill Unit up to 1-5/8 in [40 mm]

  Compact magnetic drill unit with a fixed drill motor, designed for work in confined spaces, overhead applications, and demanding jobsite conditions. With a strong power-to-weight ratio and solid construction, this mag drill provides reliable performance for HSS cutter use, carbide-tipped cutter use, and magnetic base drilling in metal.

  Details

  This magnetic drill unit features an extremely compact design with an ideal power-to-weight ratio, making it well suited for work at heights and in tight spaces. The hand feed wheel can be mounted on either side for flexible operation in special work situations.

  Internal motor cable routing helps prevent unintended threading or hanging on the workpiece, while internal cooling supports efficient drilling performance. The solid die-cast aluminum construction provides durability for tough working conditions.

  The stationary drill motor and quill feed spindle help eliminate field maintenance and adjustments while providing positive mechanical slug ejection for reliable drilling results.

  Technical Data

  Power consumption: 1,100 W
  Power output: 610 W
  Cutter holder: 3/4" straight shank
  Full load speed: 280 rpm
  No load speed: 450 rpm
  HSS cutter max. diameter: 1-5/8 in [40 mm]
  Cutter max. drilling depth: 2 in [50 mm]
  Stroke: 2-9/16 in [65 mm]
  Magnetic holding force: 2023 lbs [9,000 N]
  Cable with plug: 12.5 ft [3.8 m]
  Weight: 28.88 lbs [13.10 kg]

  Vibration and Sound Emission Values

  Sound pressure level LpA: 83.7 dB
  Measurement uncertainty KpA: 5 dB
  Sound power level LWA: 94.7 dB
  Measurement uncertainty KWA: 5 dB
  Peak sound value LpCpeak: 98.1 dB
  Measurement uncertainty KpCpeak: 5 dB

  Applications

  Use of HSS cutters: Well suitable
  Carbide-tipped cutter use: Suitable
  Mag base drilling in metal up to 1-1/2" diameter: Well suitable
  Mag base drilling in metal up to 1-9/16" diameter: Well suitable

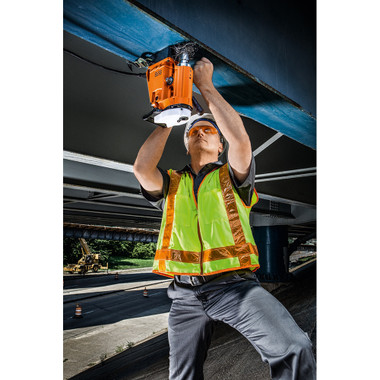

  Performing overhead work: Well suitable
  Installation work: Well suitable
  Workshop jobs: Well suitable

  Product Features

  Fixed drill motor
  Hand feed wheel can be mounted on either side
  Internal motor cable routing
  Internal cooling
  Solid die-cast aluminum construction
  Quill feed spindle
  Positive mechanical slug ejection

  Uses

  • Drilling in confined spaces
  • Overhead drilling
  • Work at heights
  • Magnetic base drilling in metal
  • Core drilling up to 1-5/8 in diameter
  • HSS cutter drilling
  • Carbide-tipped cutter drilling
  • Installation work
  • Workshop jobs
  • Steel fabrication
  • Metal plate drilling
  • Structural steel drilling
  • Maintenance and repair work
  • Jobsite drilling in tight areas
• Reviews
• Questions and Answers
• Manuals

  Download Manual Instructions PDF

  Download Sheet PDF
