IN-SAND Dynamically Balanced Non-Random Orbital CNC Sanders

PRODUCT DETAILS

Click an item to expand and learn more

• Overview
    WARNING! The max RPM for the Dynamically Balanced non Random Orbital Sander is 8,000. Working with higher rotation speed can cause damage to the machine spindle.

  Do not adust counter balance screw(s). Ensure the red mark(s) are aligned to the tool body. If not aligned, please email our technical support team for assistance at [email protected].

  Please Note:  After one hour of sanding, stop and turn the power off to your CNC machine. Inspect to ensure the tool spins freely. Repeat after each hour of sanding.

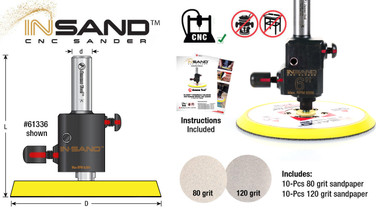

  IN-SAND™ Dynamically Balanced Non-Random Orbital CNC Sanders

  • Dynamically Balanced


  • Consistent Surface Quality
    Delivers uniform sanding results and smooth, repeatable finishes directly from your CNC.


  • Hands-Free Operation
    Eliminates much of the manual sanding to remove tool marks, saving time while improving surface prep.


  • Efficient Dust Collection
    Connects to your CNC’s dust collection system, reducing airborne dust and exposure.


  • Minimal Material Handling
    Surfacing, milling, and sanding in one setup for faster, more accurate results.


  • Finish-Ready Prep
    Leaves a clean, even surface ready for final sanding with a random-orbit sander.


  • Designed for CNC Sanding: Wood and Resin.


  • Includes 20 Replacement Sandpaper Discs
    You must adhere the sandpaper to the pad before using the sander on your material. 10 Pcs of 80 grit (Medium) and 10 Pcs of 120 grit (Fine).

  DOWNLOAD INSTRUCTIONS

  4" IN-SAND™ CNC Sander Instructions

  5" IN-SAND™ CNC Sander Instructions

  6" IN-SAND™ CNC Sander Instructions



  UNDERSTANDING YOUR CNC SANDER BEFORE USE:

  Amana Tool® IN-SAND™ CNC Sander is a precision-engineered, non-random orbital CNC sanding tool designed for sanding wood and resin surfaces. They feature a 3.5mm orbital stroke and either a 1/2" or 3/4" shank, making them compatible with many CNC machines. The sander is dynamically balanced to ensure smooth operation and reduce vibration during use.

  IN-SAND™ Dynamically Balanced Non-Random Orbital CNC Sander designed to use with any sanding disc (included) according with the finish required.

  The In-Sand™ is a non-random orbital sander, which operates in a fixed, predictable motion. The sander should not be used to flatten uneven surfaces, the surface must already be flat before sanding. The sander is dynamically balanced from the factory using the counterbalance screw as the balancing element.

  SANDPAPER GRITS

  Knowing which grit sandpaper to use depends on the type of job and what step in the process you are in. The lower the grit numbers, the coarser the disc will be, and the higher the grit, the finer it will be.

  • 80 grit: Coarse, Heavy material removal. Used for stripping paint, smoothing rough wood. Great for initial sanding of very rough surfaces. Applications: Wood Slabs, Wood, Metal, Fiberglass, Paint, Varnish, Primer, Plastic & Rubber.


  • 120 grit: Medium, Smooths surfaces after 80 grit. Good for prepping wood before finer sanding. Often used before priming or staining. Applications: Wood Slabs, Wood, Metal, Fiberglass, Paint, Varnish, Primer, Plastic & Rubber.


  • 150 grit: Medium Fine, Refines the surface after 120 grit. Used for light smoothing and general sanding before finishing. Applications: Wood Slabs, Wood, Metal, Fiberglass, Paint, Varnish, Primer, Plastic & Rubber.


  • 180 grit: Fine. Prepares wood for final finishing. Removes small scratches left by 150 grit. Good for sanding before applying stain or primer. Applications: Wood Slabs, Wood, Metal, Fiberglass, Paint, Varnish, Primer, Plastic, Rubber & Solid Surface.


  • 220 grit: Extra Fine. Final sanding before finishing. Also used between coats of finish like polyurethane or paint for a smooth, professional result. Applications: Wood Slabs, Wood, Metal, Fiberglass, Paint, Varnish, Primer, Plastic, Rubber & Solid Surface.



  #61299-T Packed In Stackable Tanos Systainer Plastic Case. Dimensions: 5.59" H x 10.43" W x 6.73" D
